Hermetically Sealed RTD
Hermetically sealed IP67 wire RTD sensor for corrosive or wet environments.
Wire RTDs
Bossmanfilter manufacture a range of bare wire resistance thermometers in Pt100 and Pt1000 for temperature measurement applications such as test and measurement, temperature mapping and OEM applications.
| Product Name | Hermetically Sealed RTD |
| Brand | Bossmanfilter |
| Temp Range | -75 to 200 ℃ |
| Length | 1. 2 and 5 mtr or to order |
| Diameter | 2.6mm nominal |
| Junction | Insulated |
| Material | 7/0.2 mm FEB Insulated |
| IP Rating | IP67 |
| Termination | Stripped tails,mini or standard plug |
| Accuracy | Class-1 |
| Features |
|
| Applications |
|
PFA Insulated RTD with Exposed Flat Film Detector
Pt100 3 wire resistance thermometer with PFA insulated lead wire
| Product Name | PFA Insulated RTD with Exposed Flat Film Detector |
| Brand | Bossmanfilter |
| Type | Pt100 3 wire |
| Temp Range | -50 to 250 ℃ |
| Length | 1, 2, 3 and 5 mtr or to order |
| Overall Dia | 1.8mm nominal |
| Junction | Insulated |
| Conductor Size | 7/0.2 mm |
| Material | PFA insulation |
| Termination | Stripped tails,mini or standard plug |
| Accuracy | Class-1 |
| Features |
|
| Applications |
|

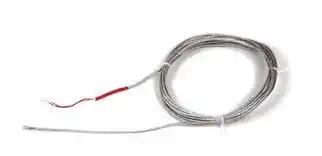

Fibreglass Insulated RTD with Exposed Flat Film Detector
Pt100 3 wire resistance thermometer with fibre glass insulated lead wire
| Product Name | Fibreglass Insulated RTD with Exposed Flat Film Detector |
| Brand | Bossmanfilter |
| Type | Pt100 3 wire |
| Temp Range | -50 to 400 ℃ |
| Length | 1,3 and 5 mtr or to order |
| Overall Dia | 1.8mm nominal |
| Junction | Insulated |
| Conductor Size | 7/0.2 mm |
| Material | Fibre Glass Insulated |
| Termination | Stripped tails,mini or standard plug |
| Accuracy | Class-A or B |
| Features |
|
| Applications |
|
