RTD Sensor (Pt100) with Fixed Process Connection
Pt100 RTD sensor with integral process thread supplied with 1 metre PFA flexible lead wire.
Fabricated RTDs
Bossmanfilter offers wide range of resistance thermometers commonly uses a fabricated sheath to protect the RTD element. They are available with your choice of detector from Pt100 to Pt1000 and precision options with a wide range of terminations, such as lead wires, plugs or industrial head assemblies to suit a wide variety of applications
| Product Name | RTD Sensor (Pt100) with Fixed Process Connection |
| Brand | Bossmanfilter |
| Temp Range | -50 to 250 ℃ |
| Length | 50,100,150,200 and 250mm as required |
| Diameter | 6mm |
| Connection | 1/2" BSP and 1/4" BSP |
| Accuracy | Class A or B |
| Material | SS 316 |
| Termination | Stripped leads |
| Features |
|
| Applications |
|
Industrial RTD Sensor Assembly (Pt100)
Industrial Thermowell Assembly with Removable Pt100 Insert for Easy RTD Sensor Replacement.
| Product Name | Industrial RTD Sensor Assembly (Pt100) |
| Brand | Bossmanfilter |
| Type | Pt100 Class B |
| Temp Range | -75 to +250 ℃ |
| Length | To suit your application |
| Diameter | 11mm with 8mm insert |
| Lagging Length | 50mm as required |
| Process Connection | 1/2 " |
| Material | 316 stainless steel wetted parts |
| Termination | M4 screw terminals |
| Features |
|
| Applications |
|
Fabricated RTD Pt100 with Crimp Seal
RTD resistance thermometer (Pt100) with 316 Stainless steel sheath; crimp sealed and supplied with 1 metre PFA flexible lead wire.
| Product Name | Fabricated RTD Pt100 with Crimp Seal |
| Brand | Bossmanfilter |
| Type | Pt100 |
| Temp Range | -50 to +250 ℃ |
| Length | 50,100,150,200 and 250 mm standard |
| Lead wire | 1 mtr or to order |
| Diameter | 3.0mm or 6.0mm |
| Accuracy | Class A or B |
| Material | 316 stainless steel |
| Termination | Stripped tails,mini or standard Plug |
| Features |
|
| Applications |
|

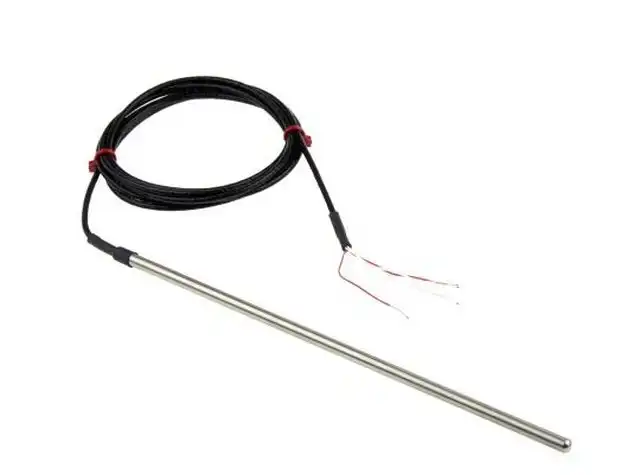

Pt100 Precision Probe with 2 metre lead
Precision Pt100 sensor offering high accuracy over the range -50 to 250℃ or 0℃ to 450℃. Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths, or for those looking for a high accuracy probe better than the usually offered class A or B types. These Precision Pt100 sensors have accuracies better than 1/10 DIN (ie. ±0.06℃ @ 0℃).
| Product Name | Pt100 Precision Probe with 2 metre lead |
| Brand | Bossmanfilter |
| Type | K,J or T |
| Temp Range | -50 to 250 ℃ or 0 to 450 ℃. |
| Diameter | 6mm |
| Probe Length | 250mm or 350mm |
| Accuracy | ±0.06 ℃ @ 0 ℃ |
| Cabel length | 2mtr |
| Material | 316 Stainless Steel |
| Cable Type | PTFE insulated screened lead |
| Termination | Bare tails or D connector |
| Screw centre | 33mm PCD |
| Block Size | 41mm Dia |
| Features |
|
| Applications |
|

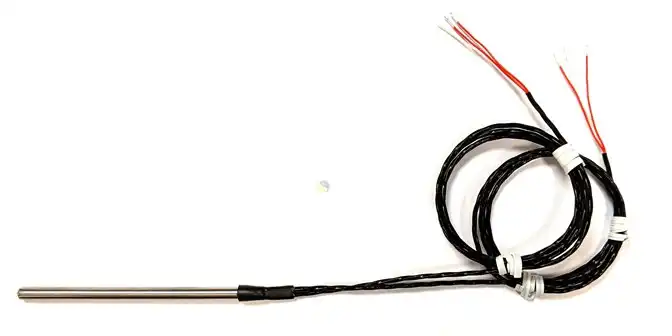

Duplex RTD Probe with Flexible Lead Wire
A Pt100 class B duplex RTD temperature probe with 316 stainless steel sheath, crimp sealed with dual 1 metre PFA flexible lead wires.
| Product Name | Duplex RTD Probe with Flexible Lead Wire |
| Brand | Bossmanfilter |
| Type | Duplex RTD |
| Sensor type | Pt100 Class B |
| Connection | 2 x 3 wires |
| Temp Range | -75 to +250 ℃ |
| Length | 50,100,150,200 and 250 mm standard |
| Lead wire | 1 mtr or to order |
| Diameter | 6 mm |
| Material | 316 stainless steel |
| Termination | Stripped tails |
| Features |
|
| Applications |
|
Pt100 with Standard (KNE) Terminal Head
RTD, resistance thermometer (Pt100) with 316 Stainless Steel sheath and standard (KNE) head for industrial applications
| Product Name | Pt100 with Standard (KNE) Terminal Head |
| Brand | Bossmanfilter |
| Type | Pt100 3 wire |
| Temp Range | -50 to +250 ℃ |
| Length | 150, 200,250,300,400,500 and 1000mm |
| Diameter | 6mm or 8mm |
| Terminal Head | IP68 weather-proof big head |
| Cable entry | M20 |
| Material | 316 stainless steel |
| Accuracy | Class-B |
| Features |
|
| Applications |
|
Screw in RTD Temperature Probe with Plug in Hirschmann Connector
Resistance thermometer (Pt100) with screw in process fitting and industry standard DIN style Hirschmann connection
| Product Name | Screw in RTD Temperature Probe with Plug in Hirschmann Connector |
| Brand | Bossmanfilter |
| Type | Pt100 3 wire |
| Temp Range | -50 to +250 ℃ |
| Length | 150,300,500mm or to order |
| Diameter | 3mm or 6mm |
| Terminal Head | IP68 weather-proof big head |
| Process Connection | 1/2 " BSP stainless steel |
| Material | 316 stainless steel |
| Accuracy | Class-B |
| Features |
|
| Applications |
|
